FuseConnect™ is designed to work with an industry standard cleaver and splicers utilising a fibre holder system and the simplified field installation process minimises the potential for operator error and expensive connector scrap, even in difficult field environments or in exposed conditions at remote site locations.
The latest fusion splicers are also pre-programmed for FuseConnect™ terminations, which further simplifies the assembly process.
Features
● No epoxy, No polishing
● Easily fusion splicer termination operation
● FuseConnect™ is designed for 900 μm coated fiber, 2 mm / 3 mm cord and rectangle shaped drop/indoor cable
Applications
● Field termination of optical connector in Data center and central office
● Low return loss connection
1) 0.9 mm fiber / 2 mm cord
| Applicable Fiber | 0.9 mm Fiber (850–950 µm) or 2 mm Cord (inside 0.9 mm Fiber) | ||

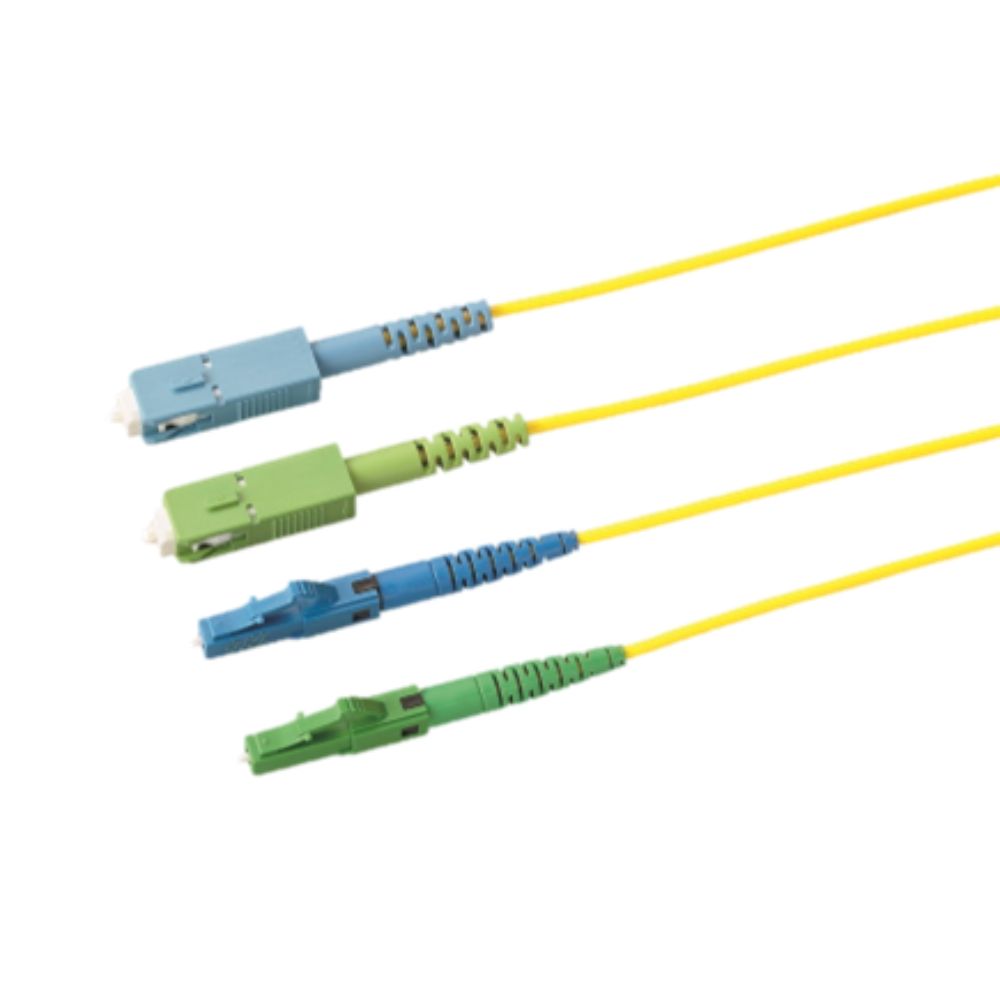

| Connector | SC, LC | ||
| Fiber | SM | MM (OM1, OM4) (*1) | |
| Polishing | UPC | APC | PC |
| Housing Color | Blue | Green | OM1: Beige, OM4: Aqua |
| Insertion Loss (*2) | ≤ 0.4 dB | ||
| Return Loss (*2) | ≥ 50 dB | ≥ 60 dB | ー |
2) Rectangular shaped cable
| Applicable Fiber | 0.9 mm Fiber (850–950 µm) or 2 mm Cord (inside 0.9 mm Fiber) | |
| Connector | SC, LC | |
| Fiber | SM | |
| Polishing | UPC | APC |
| Housing Color | Blue | Green |
| Insertion Loss (*2) | ≤ 0.4 dB | |
| Return Loss (*2) | ≥ 50 dB | ≥ 60 dB |
(*1) OM1:GI 62.5/125, IEC60793-2-10A1b, OM4:GI50/125, IEC60793-2-10A1a.3 OM2 and OM3 are also available
(*2) with master, SM @ 1310,1550 nm, MM @ 850,1310 nm
