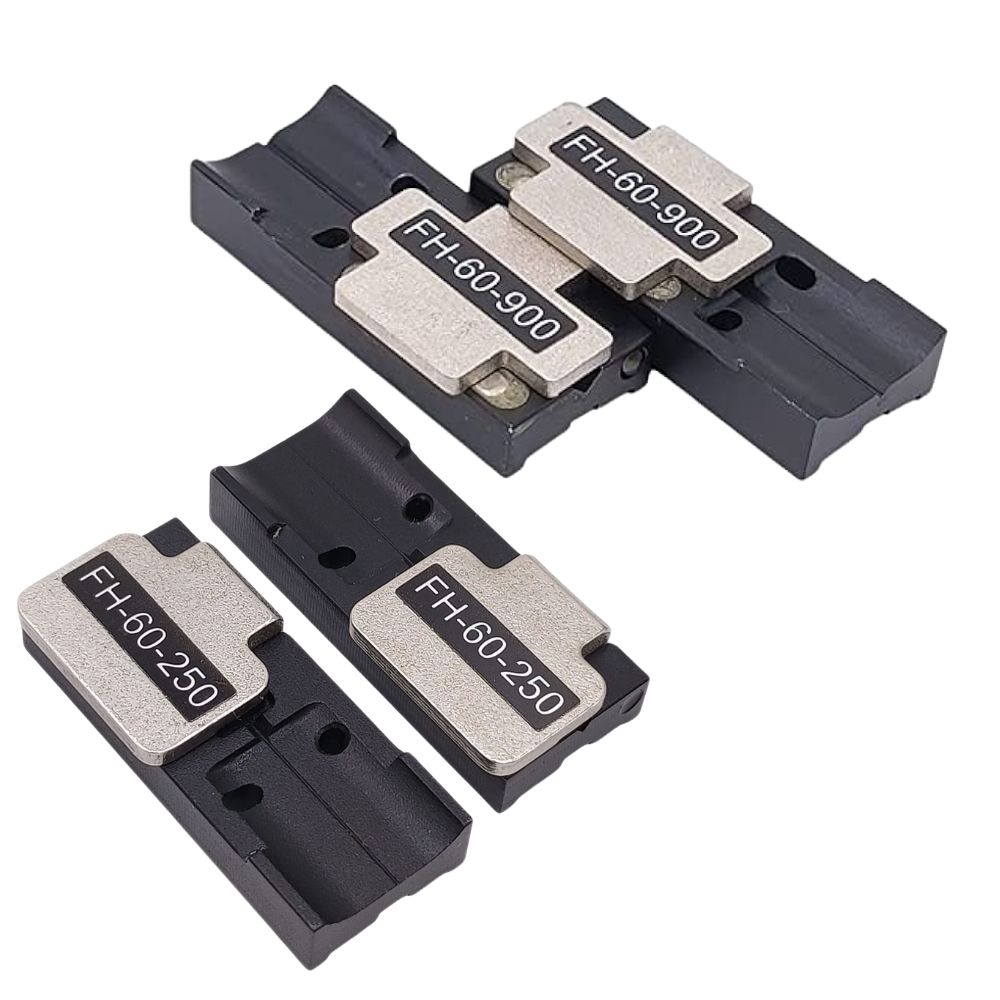

The FH-60 series single fibre holder is exclusively used for Fujikura-70S, Fujikura-62S, Fujikura-22S, Fujikura-12S, FSM-60 series, FSM-18 series, SpliceMate and previous Fujikura splicers. The Fujikura Fibre Holder System is developed to provide appropriate splicing work for several kinds of fibres, single fibres or ribbon fibres. The FH-60 series is supplied as a pair, for the left and the right respectively
| Item | Description |
|---|---|
| Applicable number of fibre | Single |
| Type variation | In accordance with outside diameter of fibre Please see VARIATION table |
| Fibre holding | Magnetic clamping |
| Fibre Holder placing onto splicer | Guide-pin system with two pins per one side of Fibre Holder |
| Dimensions | 38L x 16W x 7H [mm] |
| Weight | 20g for 1pair |
| Material | Base plate: Heat-hardening plastic / Lid: Iron-Nickel alloy |
| Use for: | |
| Arc Fusion Splicer | Single: 70S, 62S, 22S, 12S, 60S Mass: FSM-60R, FSM-18R, 70R, 19R, 12R, and previous Fujikura mass fibre splicers |
| Fiber Cleaver | CT-30, CT50, CT08 |
| Jacket Stripper | HJS-02, HJS-03 (FH-60-250 only） |
| Model | Fibre |
|---|---|
| FH-60-250 | Single (250μm) |
| FH-60-900 | Single (900μm) |
| FH-60-DC250 | Drop Cable (250μm) |
| FH-FC-20 | 900μm 2mm |
| FH-FC-30 | 900μm 3mm |
